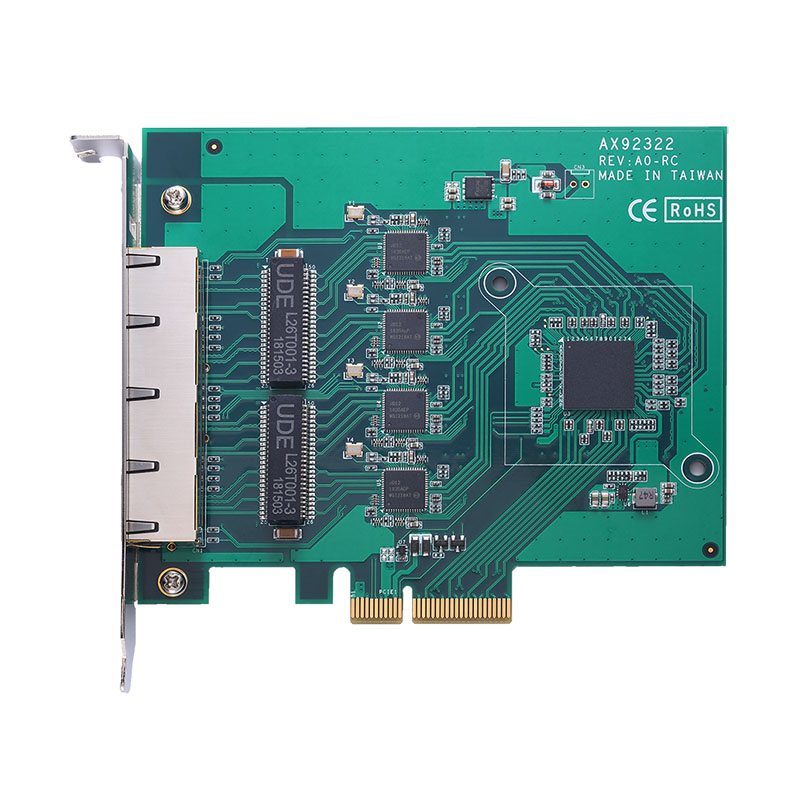

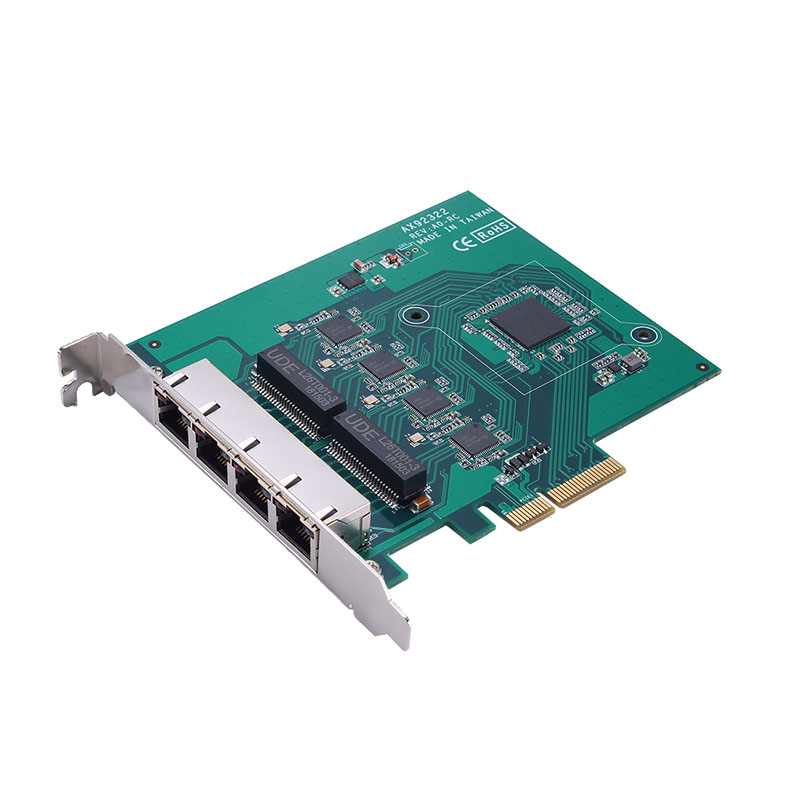

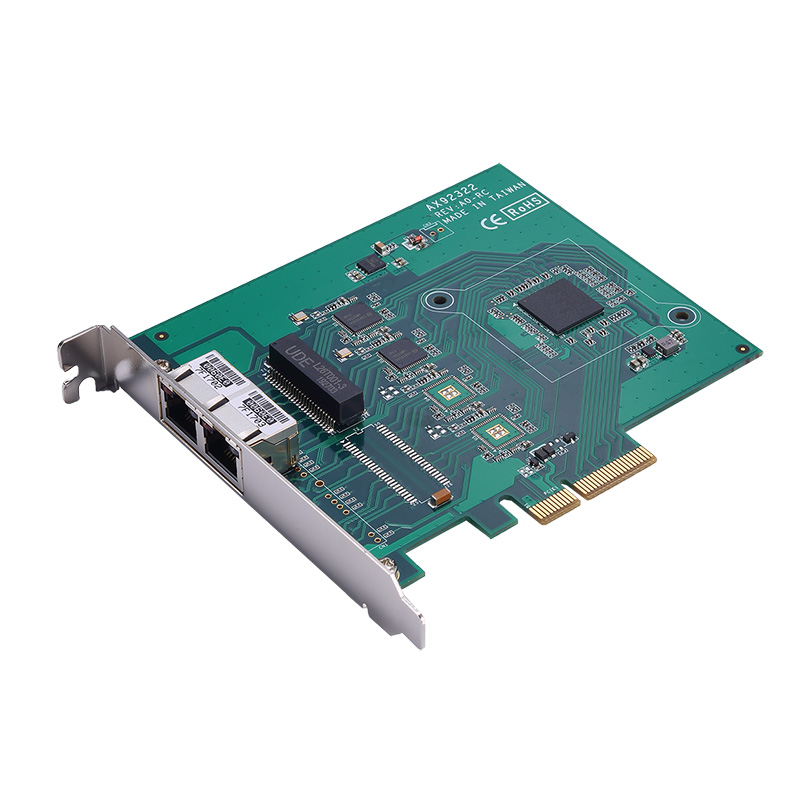

Features
- 2 or 4 independent Intel® Ethernet Controller i210-AT
- Supports 9.5KB Jumbo Frame and IEEE 1588
- Supports two or four GbE LAN ports
- PCI Express x4 interface
- Operating temperature from 0˚C to 70°C
Introduzione
Closer to a More Sustainable Future
Axiomtek’s ICO120-E3350 is designed to simplify device-to-cloud communication and enable data-driven condition-based maintenance management for the connectivity of industrial devices as well as next-generation intelligent infrastructure to the Internet of Things.
Optimized Performance
The ICO120-E3350, an extremely compact industrial IoT gateway, is powered by the Intel® Celeron® processor N3350 (codename: Apollo Lake-M). The ICO120-E3350 features fanless operation, -40°C to 70°C operating temperature range, and 9V to 36V DC wide power input with overvoltage and reverse protection.
More Expansion Possibilities
The IIoT gateway comes with a full-size Rev. 1.2 PCI Express Mini Card slot with SIM socket for Wi-Fi, 3G/4G/LTE and GPS connectivity and a half-size Rev. 1.2 PCI Express Mini Card slot for wireless module and mSATA SSD.
Rich I/O Interfaces
This budget-friendly industrial gateway supports rich I/O interfaces, including two DB9 ports with COM/CAN/DIO selections, one HDMI, two USB 2.0, two RJ-45, and two antenna openings.
