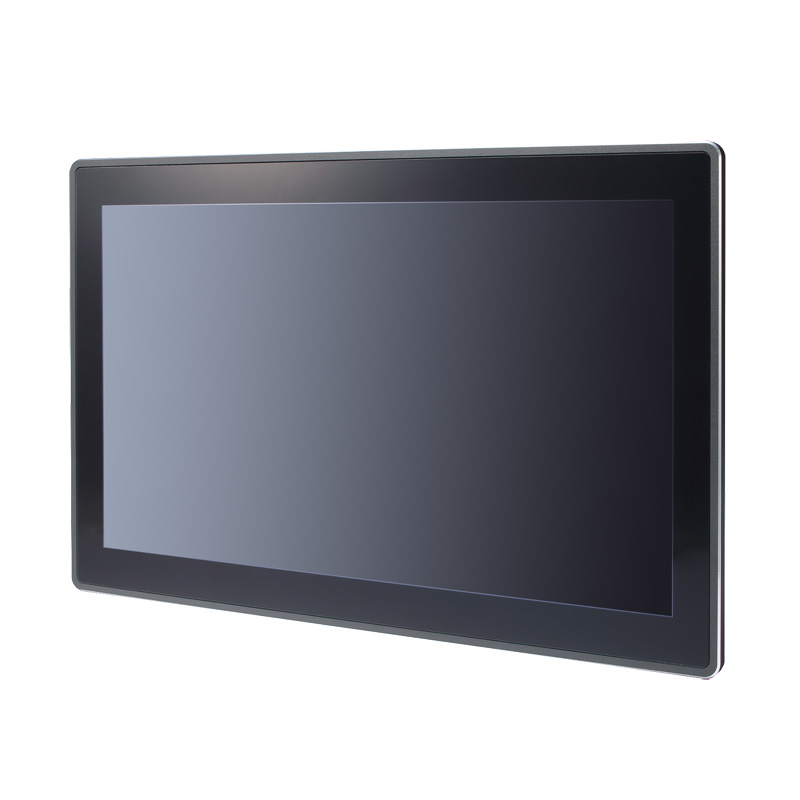

LCD Panel |
- 21.5" Full HD TFT LCD
- 250 nits
- 16:9 ratio
- 1920 x 1080 pixels
|

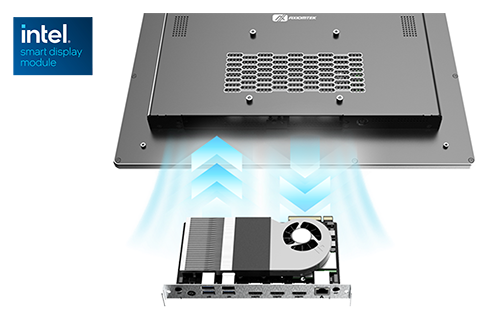

SDM Module |
- Intel® SDM Small (SDM-S, 60 x 100 mm)
- Intel® SDM Large (SDM-L, 175 x 100 mm)
|
CPU |
- SDM300S: Quad-core Intel® Pentium® N4200 1.1GHz processor or dual-core Intel® Celeron® N3350 1.1GHz processor
- SDM500L: Intel® Celeron® 4305UE 2.0GHz processor or Intel® Core™ processor (optional)
|
Chipset |
|
System Memory |
- SDM300S: Onboard LPDDR4 2400 MHz 4GB (8GB optional)
- SDM500L: 2 x 260-pin DDR4-2400 SO-DIMM slot, up to 64GB
|

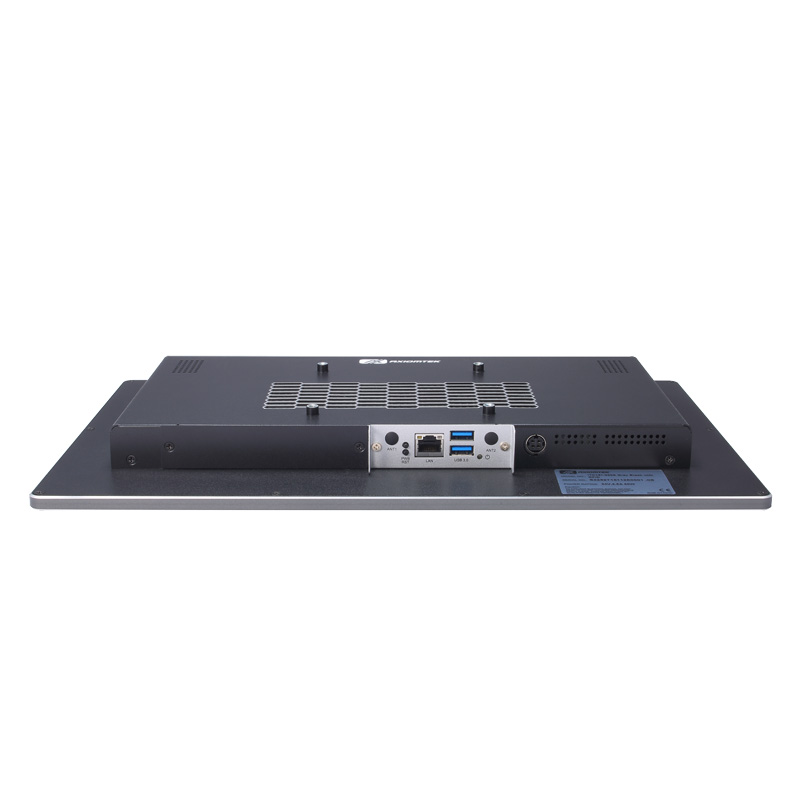

SDM-S I/O |
- 1 x GbE LAN
- 2 x USB 3.0 Type A
- 2 x SMA antenna reserved hole
|
SDM-L I/O |
- 1 x Power button with LED
- 1 x GbE LAN
- 4 x USB 3.0 Type A
- 1 x Audio output
- 1 x Microphone input
- 2 x SMA antenna reserved hole
|
I/O |
|
Touchscreen |
- Projected capacitive multi-touch
|
Front Bezel |
|
Expansion |
- SDM300S: 1 x M.2 Key E 2230 slot (for Wi-Fi)
- SDM500L: 1 x M.2 Key E 2230 slot (for Wi-Fi)
|
Storage |
- SDM300S: eMMC 64GB onboard
- SDM500L: 1 x M.2 Key B 2242 slot
|
Others |
- 2 x S.P.L. 88dB, 1.5W, 4 ohm
|
Power Supply |
- 24V AC to DC power adapter
|
Power Consumption |
|
Dimensions |
- 526.1 x 46.3 x 317.6 mm (20.7" x 1.8" x 12.5")
|
Weight (net/gross) |
- 6.9 kg (15.2 lb)/10.2 kg (22.4 lb)
|
Operating Temperature |
- 0°C to +40°C (+32°F to +104°F)
|
Operating Humidity |
- 20% to 90%, non-condensing
|
Certications |
|
