Axiomtek, one of the world's leading designers and manufacturers of innovative, high performance and reliable PC-based industrial computer products, has announced the arrival of the P1177E-842, its new low power industrial touch panel computer with great expansion capability. The expendable industrial touch panel PC is equipped with a 17-inch SXGA TFT LCD display and IP65 compliant front bezel. This rugged panel PC is powered by quad-core Intel® Celeron® processor J1900 (codename: Bay Trail) for a great balance between performance and power consumption. The 17” 5-wire resistive touchscreen panel PC comes with both PCI and PCI Express Mini Card slots, and is also capable of dual-display through VGA and HDMI outputs. The P1177E-842 is a highly integrated system for factory automation, kiosks, industrial automation, and IoT & M2M applications.
“Axiomtek’s new P1177E-842 provides essential computing performance, stylish look, rich interfaces, and excellent protection in one touch panel system. Built-in Intel® Bay Trail SoC the P1177E-842 provides the best cost and performance ratio for most automation applications,” said Anthony Chen, product manager for Axiomtek’s Product PM Division. “The entire 17-inch touch panel PC is protected by a robust, slim aluminum casing with IP65/NEMA 4 compliant front bezel, which makes it suitable to operate in extreme and space-constricting environments. There are only three screws on the back chassis, which users can quickly remove it and install storage, memory and expansion cards with ease. For versatility, the Axiomtek industrial panel system features one PCI slot and PCI Express Mini Card slot, giving customers the ability to add functionality, such as field bus communication, digital I/O, and optional Wi-Fi module for wireless network connectivity.”
Expansion capability
The 17-inch industrial touch panel PC, P1177E-842, offers one PCI slot or one PCIe slot for expansion purpose. User can easily plug in standard half-size PCI card for any requirement.
Dual monitor display
The Axiomtek P1177E-842 comes with dual display interfaces of VGA and HDMI to enable multiple displays on a single panel computer system. It not only increases larger screen viewing but also improves the productivity.
Speaker and WLAN antenna (optional) supported
The scalable P1177E-842 features built-in speakers which can be used for multimedia content displays on kiosk applications. It also supports Wi-Fi 802.11 module and antenna for wireless network connectivity up to 200Mbps data rate. By plugging in the WLAN module, users can have instant access to wireless LAN/GPRS/GSM/3G.
Friendly less screw design
|The 17-inch Intel® Bay Trail SoC industrial touch panel PC is designed with ease of maintenance in mind. There are only three screws on the back chassis, so that technicians can quickly remove the system’s back cover with minimum effort.
IP65/NEMA 4 water/dust-proof front bezel design
To withstand harsh operating environments, the application-ready 17in rugged touch panel computer is made with a robust mechanical design and has an IP65/NEMA 4 water/dust-proof protection from spillage.
Full I/O and more features

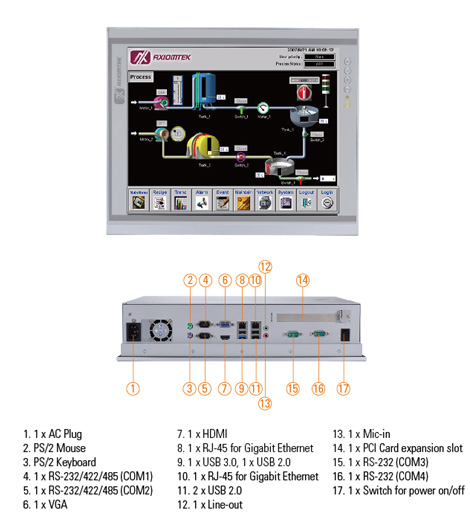

Axiomtek’s P1177E-842 supports rich interfaces such as VGA, HDMI, four COM ports (2 RS-232 & 2 RS-232/422/485), one USB 3.0 port, three USB 2.0 ports, two Gigabit Ethernet ports, and audio (line-out and mic-in). It has one DDR3L SO-DIMM socket supporting a maximum of up to 8 GB. One 3.5” or 2.5” SATA HDD drive bay and one mSATA are supported. Furthermore, this power-efficient 17” touch panel unit can be installed using a panel mount, wall mount, VESA arm or desktop stand depending on the application need.
The all-in-one industrial touch panel PC P1177E-842 is available to order now. More powerful Axiomtek P1000 series of industrial touch panel computers will be revealed soon. Axiomtek provides a wide array of IoT & M2M industrial systems for transportation, energy-saving & utility and automation fields. For more product information or pricing, please visit our global website at www.axiomtek.com or via Facebook, Twitter and YouTube. Please contact one of our sales representatives at info@axiomtek.com.tw.
P1177E-842 Main Features:
- 17-inch SXGA TFT slim design industrial touch panel computer
- Intel® Celeron® processor J1900 2.0 GHz (Intel® Bay Trail SoC)
- Supports DualView (VGA or HDMI interfaces)
- IP65-rated water/dust-proof front bezel and NEMA4 protection
- Less screw design on back chassis for user’s convenience
- Built-in speaker and WLAN module (optional) supported
- Four COM ports (two RS-232 and two RS-232/422/485), one USB 3.0 port, three USB 2.0 ports, dual Gigabit Ethernet ports, and audio (mic-out and mic-in)
- Supports panel mount, wall mount, VESA mount, rack mount and desktop stand
