Features
- Cost-effective with fanless and cableless design
- Intel® Celeron® processor N3350/Pentium® processor N4200, reliable F1 stepping version CPU
- 4 isolated COM, 4 USB, 2 GbE LAN
- 8-bit programmable DIO for IoT gateway applications
- Wide operating temperature range from -40°C to +70°C
- 12 to 24 VDC wide range power input
- OVP, UVP, OCP, RPP power protection design
- eAPI intelligent remote monitoring software for IIoT
Introduzione

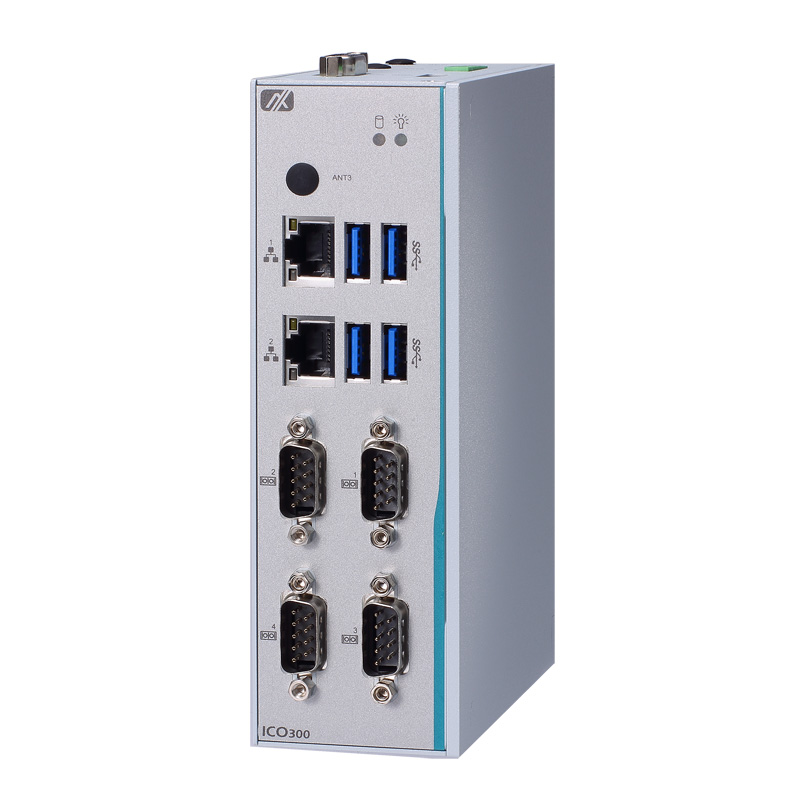

The ICO300-83B is powered by the low-power consumption Intel® Celeron processor N3350 or Pentium® processor N4200. ICO300-83B’s proven rugged construction ensures harsh operating conditions with an extended temperature range of -20°C to 70°C (-40°C to +70°C for option), a wide voltage range of 12V-24V DC power input with overvoltage and reverse protection, and up to 2G vibration endurance. It supports one DDR3L-1600 SO-DIMM slot with up to 8 GB of system memory. Additionally, the ICO300-83B is equipped with two full-size PCI Express Mini Card slots, one for an mSATA storage card and another for 3G/GPRS/Wi-Fi - allowing it to provide flexible communication and data transfer options for use as an IIoT gateway.
