Features
- Extreme cost-effective with fanless and cableless design
- Intel® Celeron® processor N3350, reliable F1 stepping version CPU
- 1 COM or CAN, 2 USB, 2 GbE LAN
- 8-bit programmable DIO for IoT gateway applications
- Wide operating temperature range from -20°C to +70°C
- 12 to 24 VDC wide range power input
- OVP, UVP, OCP, RPP power protection design
- Supports SocketCAN
- Microsoft Azure IoT Edge certified
Introduzione

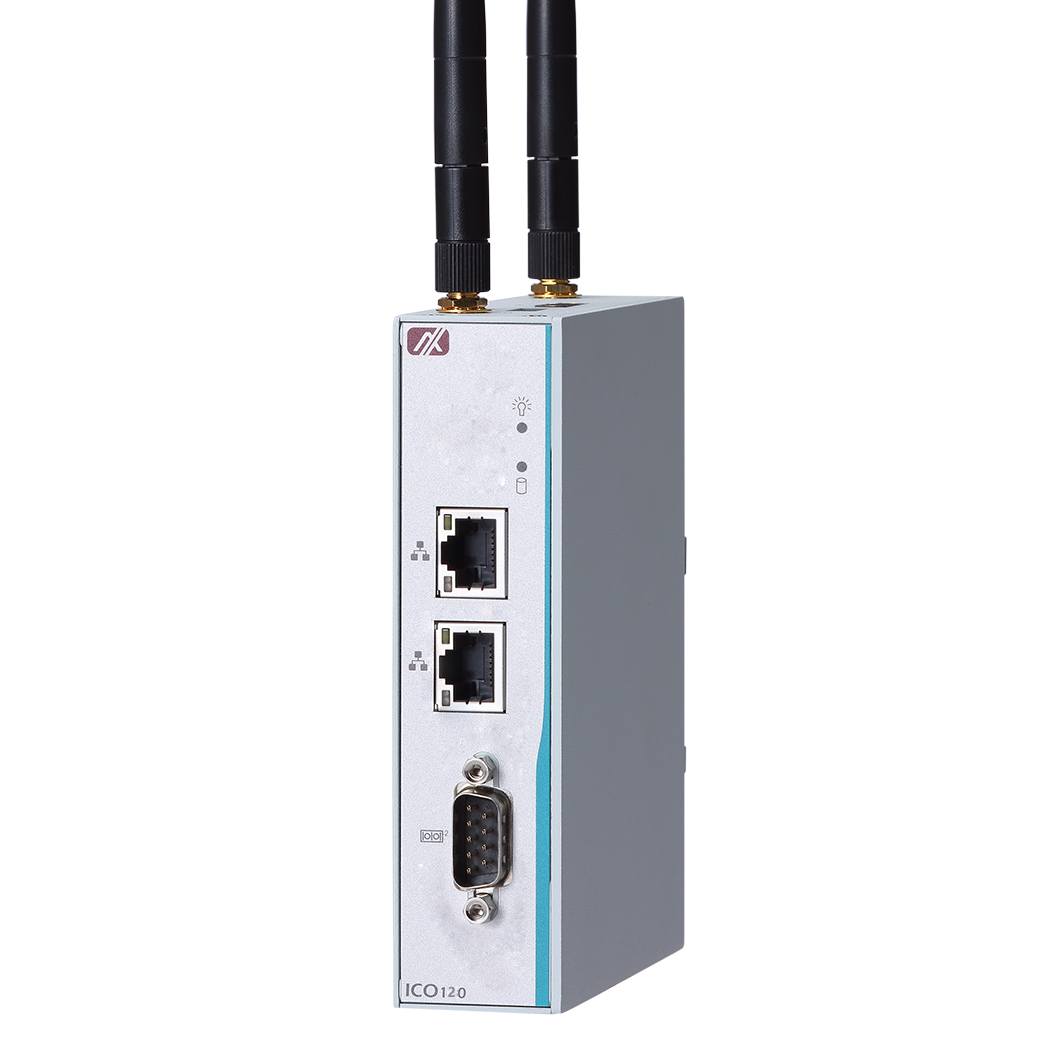

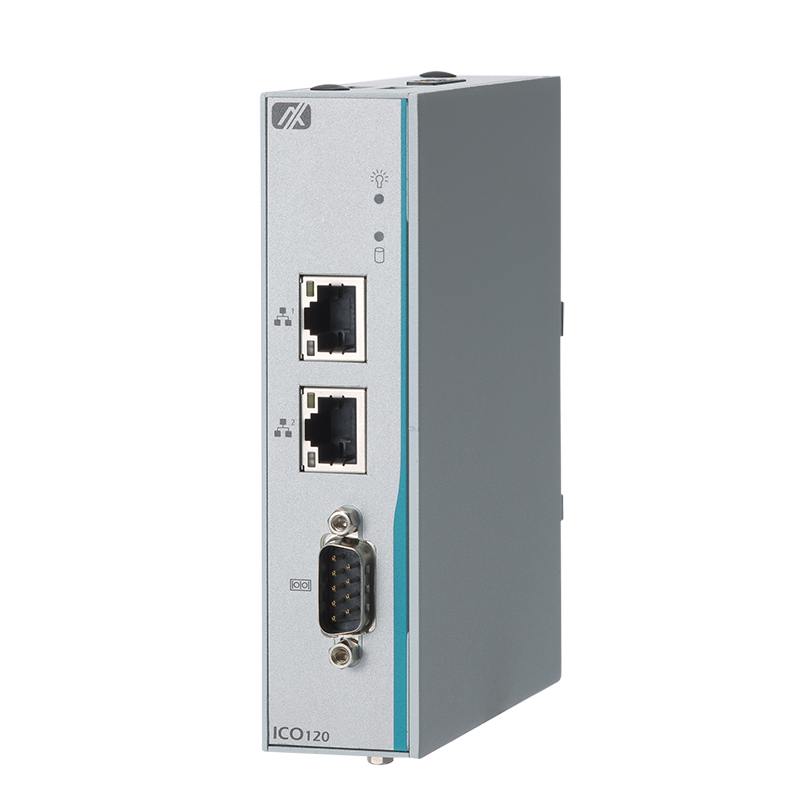

The ICO120-83D is powered by the Intel® Celeron® processor N3350. The embedded filed controller supports one DDR3L-1600 SO-DIMM slot with up to 8 GB of system memory. It is equipped with one full-size PCI Express Mini Card slot, one half-size PCI Express Mini Card slot in support of mSATA, and one SIM socket to provide flexible extension capability. The ICO120-83D measuring only 31 x 100 x 125 mm is well-suited for space-constrained deployments. It offers an IP40 extruded aluminum and heavy-duty steel design for durable use. This powerful industrial IoT gateway can withstand harsh operating conditions with an extended temperature range of -20°C to 70°C and vibration resistance up to 2G. Additionally, the unit supports a wide voltage range of 12V to 24V DC power input with overvoltage and reverse protection.
