NA362R

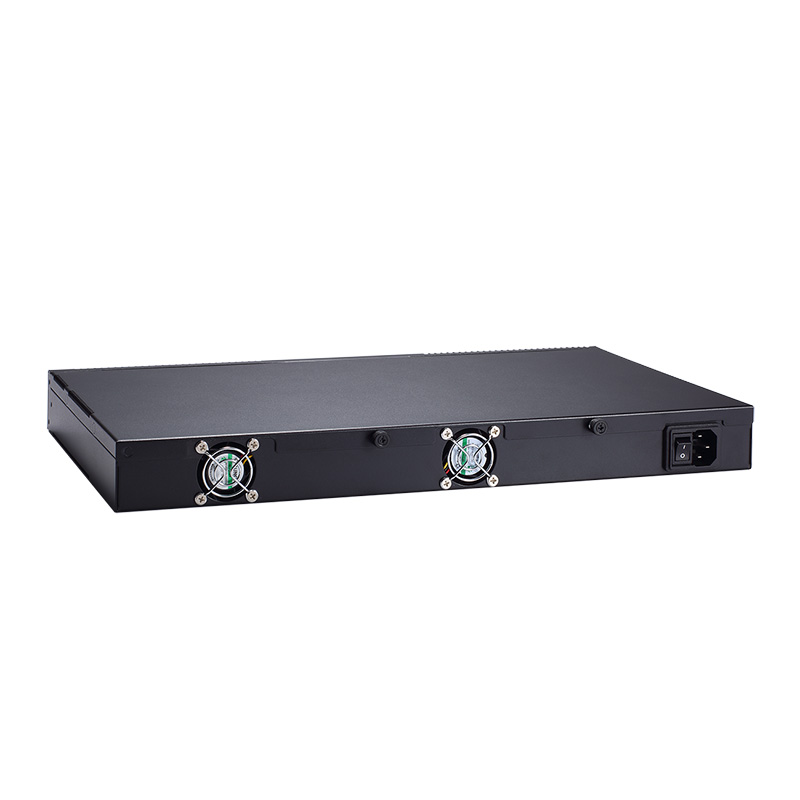

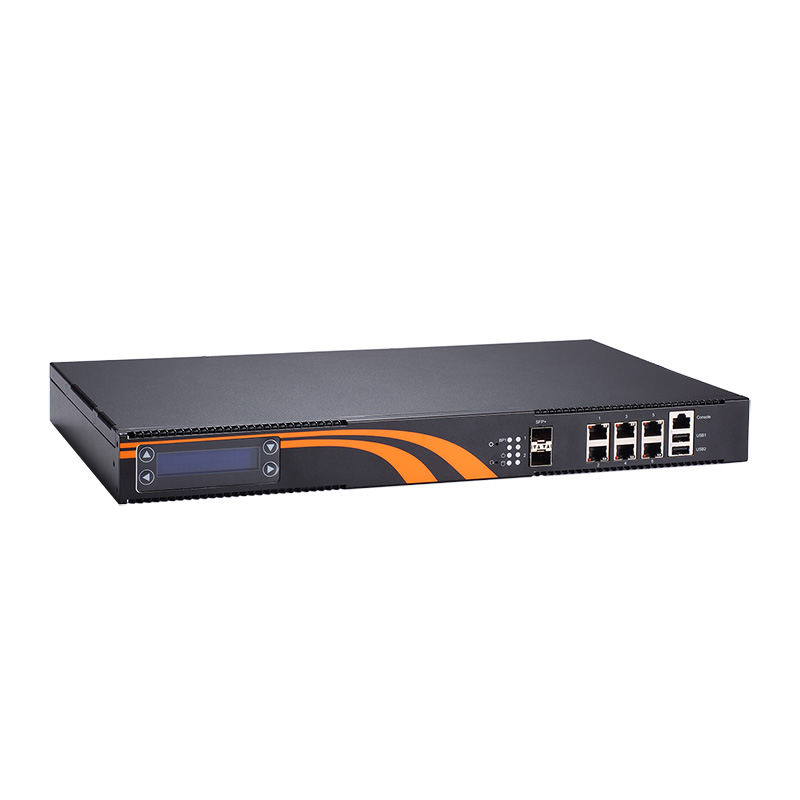

1U Rackmount Network Appliance Platform with Intel® Atom® Processor C3558/C3758 and up to 10 LAN

Status：Available

Features

Form Factor	1U rackmount
CPU	Intel® Atom® processor C3558/C3758 (Denverton)
Chipset	SoC integrated
System Memory	4 x DDR4 R-DIMM/U-DIMM. up to 128GB non-buffer non-ECC/ECC memory
BIOS	AMI
Ethernet	6 x GbE RJ-45 (Intel® i210) 2 x 10GbE SFP+ (C3558)/4 x 10GbE SFP+ (C3758)
LAN Bypass	LAN Bypass function through latch relay (one pair)
LAN Module	N/A
Storage	2 x 2.5" SATA3 HDD 1 x mSATA
Expansion	N/A
I/O Interface	1 x Console (RJ-type) 2 x USB 2.0 6 x RJ-45 + 2 x SFP+ (C3558); 4 x SFP+ (C3758)
Power Supply	120W open frame
LCM Module	Yes
Watchdog Timer	255 stepping for system reset 8 stepping for LAN Bypass
Operating Temperature	0°C to +45°C (+32°F to +113°F)
Dimensions (H x W x D)	44 x 430 x 250 mm (1.73" x 16.93" x 9.84")
Weight (net/gross)	3.5 kg (7 lb)/4.5 kg (9 lb)
OS	Yocto, Linux
Certifications	CE/FCC Class B
Others	Onboard TPM 1.2/2.0 (optional)

NA362R-R8MI-C3558-US (P/N-E26E362103)
1U rackmount network appliance with Intel® Atom® processor C3558, 6 GbE LAN and 2 SFP+ ports
NA362R-RAMI-C3758-US (P/N-E26E362104)
1U rackmount network appliance with Intel® Atom® processor C3758, 6 GbE LAN and 4 SFP+ ports
5916E552000E
DB9F-RJ-45 1.8M console cable for Cisco

Date	Description	Version	Download File
2024/12/06	NA362 User's Manual VA4	VA4	4,5 MB

Date	Description	Download File
2022/07/18	UKCA Declaration of Conformity	134 KB
2020/03/25	CE LVD Verification	269 KB
2018/03/05	FCC Verification	33 KB
2018/03/05	CE-Conformity Declaration	98 KB
2018/03/05	CE EMC Verification	68 KB
2018/03/05	CE LVD Verification	124 KB
