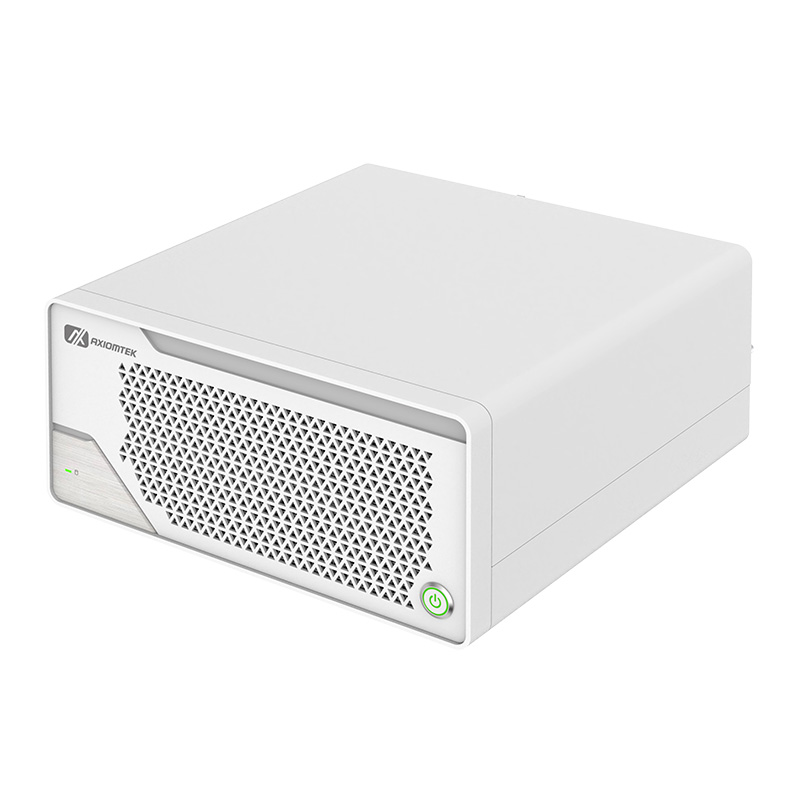

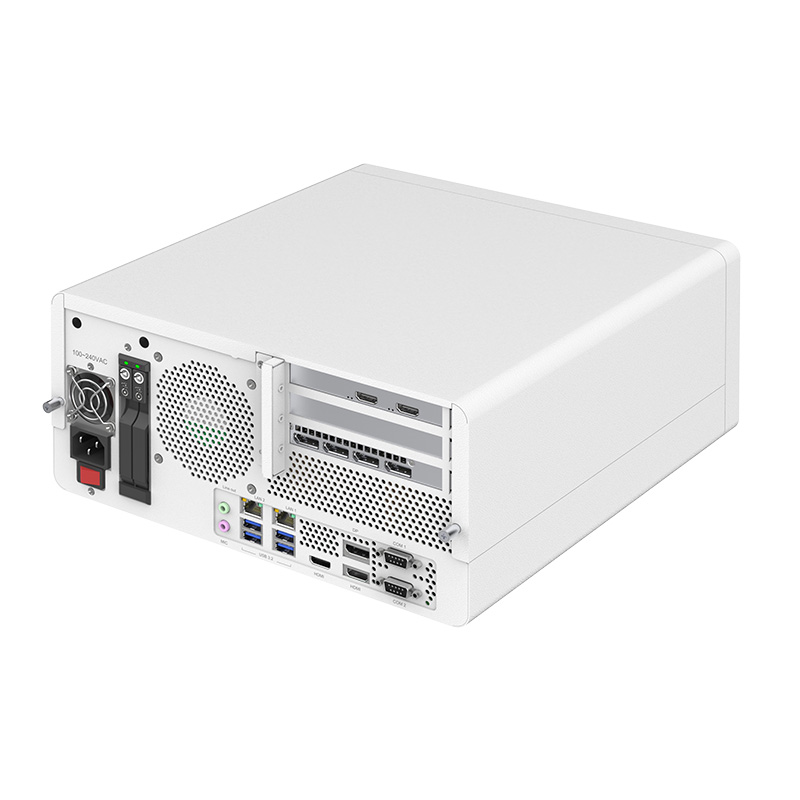

Features
- 13th gen Intel® i9/i7/i5/i3 processor with Intel® R680E chipset, up to 65W TDP
- 2 DDR4-3200 SO-DIMM, up to 64GB memory
- 2 HDMI 1.4b and 1 DisplayPort++ 1.2 with 4K UHD resolution
- 2 COM and two 2.5GbE LAN
- 2 PCIe x16 expansion slots for GPU and capture cards
- 1 M.2 Key E 2230 and 1 M.2 Key B 3052/3042
- 1 M.2 Key M 2280 slot and two 2.5" SATA III drives
Introduzione
The CAPA55R is powered by the 11th Gen Intel® Core™ i7/i5/i3 & Celeron® processors (code name: Tiger Lake-UP3) with 28W cTDP and Intel® Iris® Xe Graphics. The industrial-grade embedded board features triple-display capability through HDMI 1.4, LVDS and DisplayPort++ interfaces, making it well-suited for graphics-intensive applications. This industrial motherboard is designed for operational stability with a wide operating temperature range from -20°C to +60°C. The CAPA55R is optimized for various industrial IoT-related applications in the embedded market, such as industrial control, machine vision, self-service terminal, digital signage, and medical imaging.
